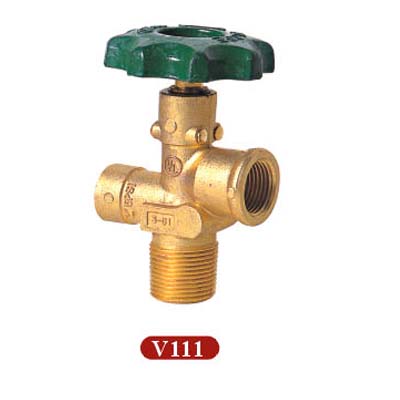

产品名称	液化石油气瓶阀	Product name	LPG Cylinder Valve
型号	V111	Model	V111
工作压力	250PSI (1.7MPa)	Working pressure	250PSI (1.7MPa)
公称通径	7mm	Seal diameter	7mm
进口螺纹	3/4"-14NGT	Inlet thread	3/4"-14NGT
出口螺纹	F POL (0.885"-14NGO-LH)	Outlet thread	F POL (INT 0.885"-14NGO-LH)
安全释放压力	375PSI (2.6MPa)	Safety release pressure	375PSI (2.6MPa)
主材	黄铜HPb 59-1。其它牌号可提供	Main material	Brass HPb 59-1. Other numbers are available.
有其它多个规格，或订做		There are many other specifications, or customized.
