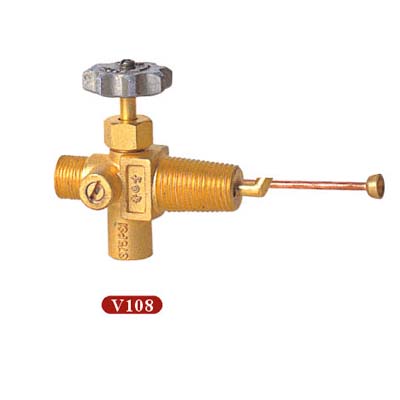

产品名称	液化石油气瓶阀（澳洲）	Product name	LPG Cylinder Valve (Australia)
型号	V108	Model	V108
工作压力	1.4MPa	Working pressure	1.4MPa
公称通径	3mm	Seal diameter	3mm
进口螺纹	W20.161×1/4	Inlet thread	W20.161×1/4
出口螺纹	G3/8-LH	Outlet thread	G3/8-LH
安全释放压力	375PSI (2.6MPa)	Safety release pressure	375PSI (2.6MPa)
主材	黄铜HPb 59-1。其它牌号可提供	Main material	Brass HPb 59-1. Other numbers are available.
有其它多个规格，或订做		There are many other specifications, or customized.
