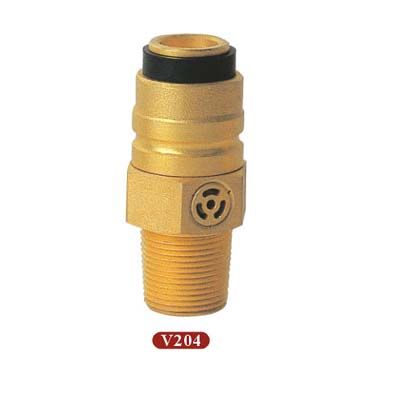

产品名称	液化石油气瓶直阀	Product name	LPG Cylinder Straight Valve
型号	V204	Model	V204
工作压力	250PSI (1.7MPa)	Working pressure	250PSI (1.7MPa)
公称通径	4mm	Seal diameter	4mm
进口螺纹	PZ27.8	Inlet thread	PZ27.8
出口外径	25mm	Outlet Ext Dia	22mm
安全释放压力	375PSI (2.6MPa)	Safety release pressure	375PSI (2.6MPa)
主材	黄铜HPb 59-1。其它牌号可提供	Main material	Brass HPb 59-1. Other numbers are available.
有其它多个规格，或订做		There are many other specifications, or customized.
