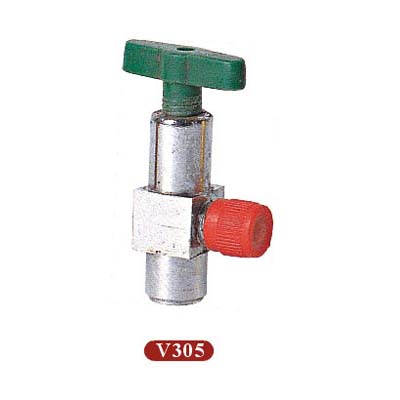

产品名称	空调氟利昂阀	Product name	Freon Valve for Air Conditioner
型号	V305	Model	V305
工作压力	2.7MPa	Working pressure	2.7MPa
公称通径	6mm	Seal diameter	6mm
进口	焊接	Inlet	Welding
出口螺纹	04375-20UNF-2A	Outlet thread	04375-20UNF-2A
表面处理	镀	Finish	Galvanized
主材	黄铜HPb 59-1。其它牌号可提供	Main material	Brass HPb 59-1. Other numbers are available.
有其它多个规格，或订做		There are many other specifications, or customized.
